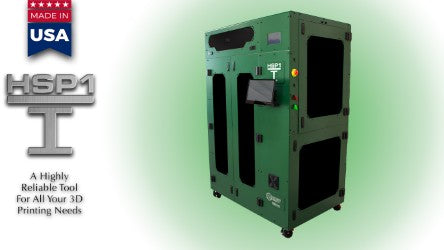

HSP1-I

The HSP1-I is our most advanced 3D printer, designed to meet the needs of high-performance printing with its Independent Dual Extrusion (IDEX) system. This innovative feature allows you to use two separate printheads, enabling you to work with multiple materials simultaneously. Imagine creating intricate parts with dedicated support materials like soluble or breakaway supports, all while enjoying fast and reliable printing.

• Build Volume

  X: 650mm / 26in
  Y: 640mm / 25in
  Z: 1,000mm (1 Meter) / 40in

• Machine Dimensions

  X: 1,320mm / 52in
  Y: 890mm / 35in
  Z: 1,930mm / 76in

  (Fits through a 36" doorway!)

• Electrical & Networking

  Works with a standard 120VAC 15A Circuit (Grounded)

  Full Industrial Breaker Protection

  Networked with WiFi or Ethernet, and also works without being on a network

• Electronics

  Duet 3 Controller Platform

  Open Source RepRap Firmware

  Filament Detection & Clog Sensors

  AC-powered bed heater, up to 110C with Integrated Thermal Fuse

  Closed-Loop Stepper Motors on all 3 axes (X, Y, and Z)

  High Precision Bed Level Sensor

  Independent Tilt and Mesh Bed Leveling

  Open Slicer Compatibility - Use Whatever Slicer You Want

  Material Profiles to be provided for select slicers

  Dual Screens for both local direct control and the web interface without requiring a separate laptop

• Mechanical

  Print Resolution: >50 microns

  Print Speeds up to 300mm/s, Travel Speeds up to 800mm/s

  Z-Axis Driven by 4 Independent Ballscrews with a 10:1 Gearbox

  X and Y Axes Driven by High Speed GT2 belts

  Linear Rails on X, Y, and Z axes

  Independent Dual Extrusion (IDEX) on Y-Axis

  1/4" MIC-6 Aluminum Print Bed

  Removable Magnetic Flex Plate with Textured PEI Print Surface (Other Surfaces Available)

  Integrated Dual 10kg Spool Holders

  Industrial Casters with Leveling Feet

• Printheads

  Dual Printheads, Independently Controlled (IDEX)

  1.75mm Diameter Open Filament Compatibility - Use Whatever Materials You Want

  Bondtech LGX Pro Extruders

  Dual Takoto HE20 Hotends with Maximum Flow Rate of over 20mm3/s

  Abrasion-Resistant Nozzles (0.60mm Nozzle Size By Default)

  Dual 50-Watt Industrial Heaters, For 100 Watts of Total Heating Power per Printhead
